Citroen Dispatch LWB (New Model 2016 ) Triple Unit Van Racking, Plywood Shelving
Citroen Dispatch LWB (New Model 2016 ) Triple Unit Van Racking, Plywood Shelving

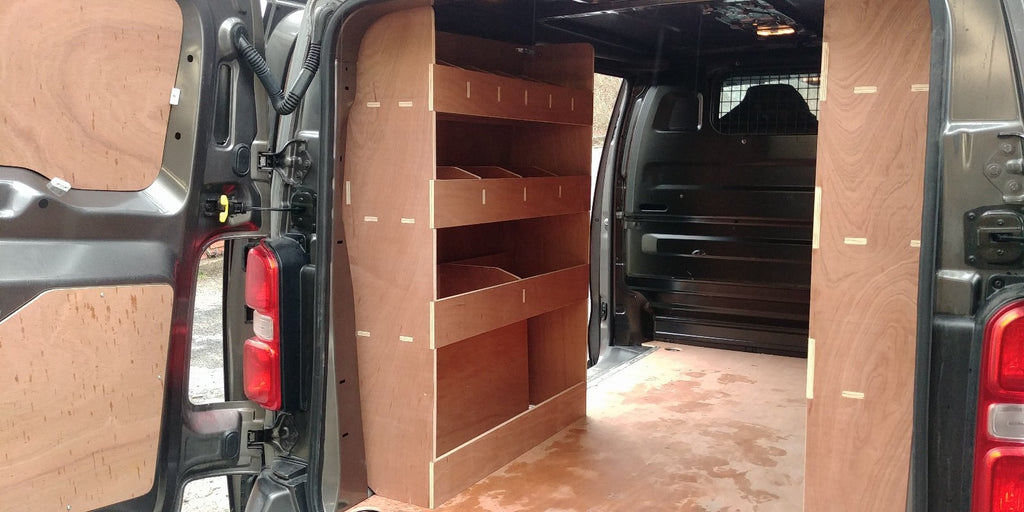

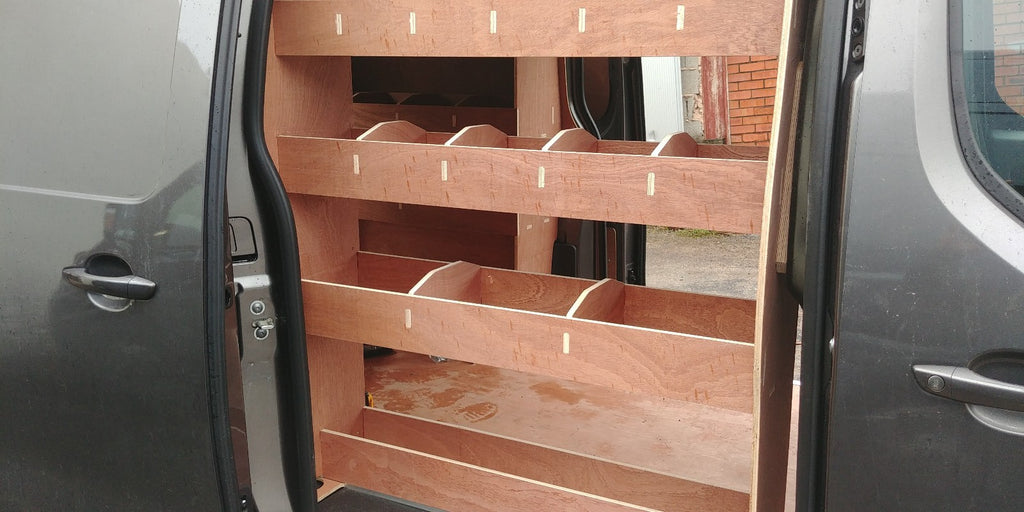

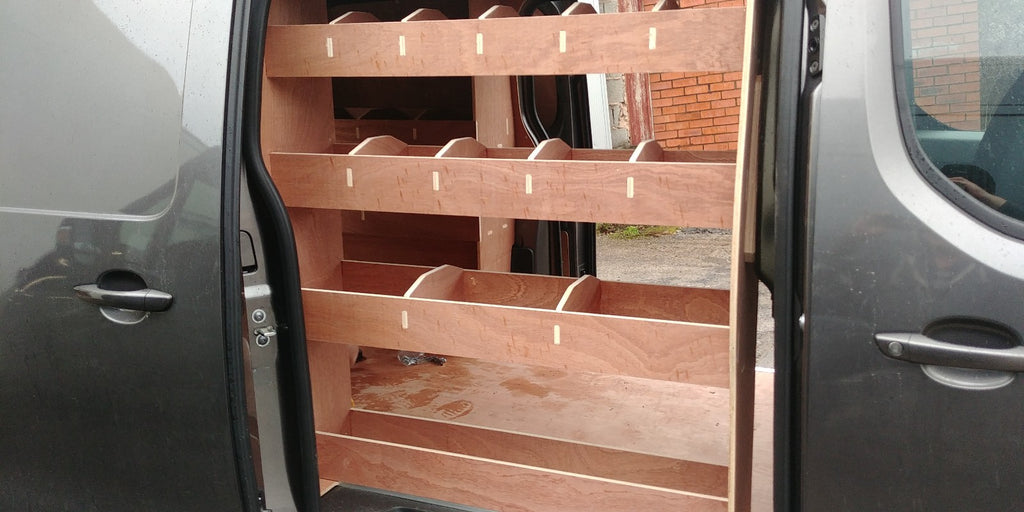

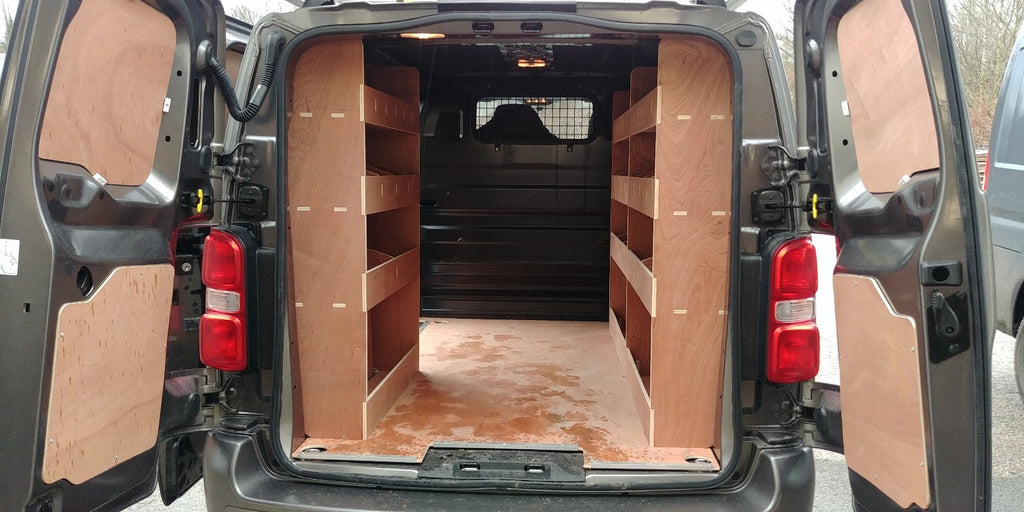

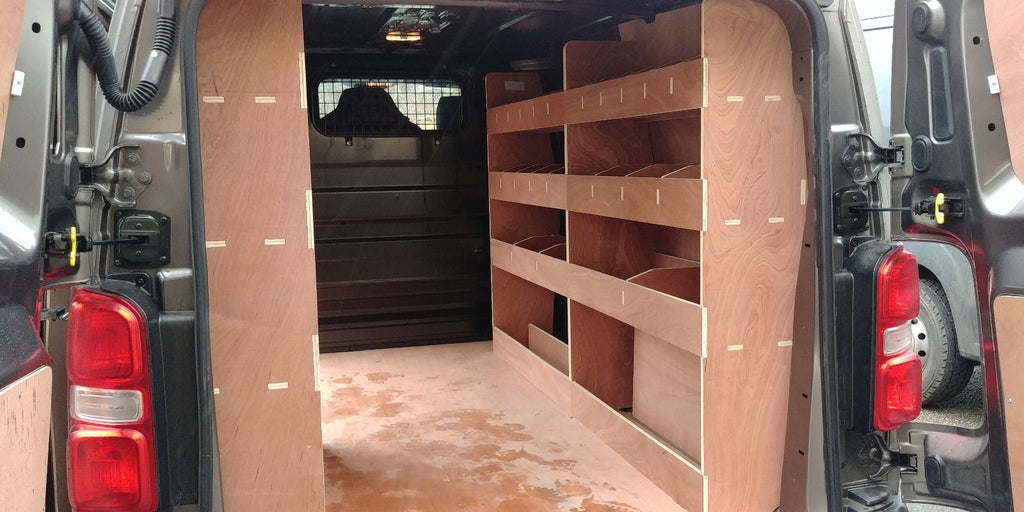

Citroen Dispatch LWB 2016> Van Racking System – 3 Units
Premium Plywood Van Shelving | Flat Pack | CNC Cut | Built to Last
Product Overview
This triple setup includes 3 custom-made shelving units designed specifically for the Citroen Dispatch LWB van. Each unit is CNC-cut for precision and crafted from premium 12mm hardwood plywood — built for serious work vans that demand durability.
The design maximises storage space while following the internal contours of your van for a snug, professional fit.
Flat Pack & Assembly
- All units arrive flat-packed for easy handling
- Assembly takes around 10–15 minutes per unit
- Assembly hardware and screws supplied (glue not included)
- Clear instructions provided
Materials & Build Quality
- Made from premium FSC-certified 12mm hardwood plywood
- Far more durable than lightweight ply variants
- Traditional mortise and tenon joints for strength
- Grooved bases for long-lasting performance
Dimensions
O/S Rear Unit: 1240mm (H) x 1330mm (W) x 340mm (D)
Storage: 3 shelves / 14 compartments
Top: 7 x 176mm (Wide) x 216mm (Deep)
Mid: 4 x 317mm (Wide) x 242mm (Deep)
Bot: 3 x 427mm (Wide) x 277mm (Deep)
N/S Rear Unit: 1240mm (H) x 1330mm (W) x 340mm (D)
Storage: 3 shelves / 14 compartments
Top: 7 x 176mm (Wide) x 216mm (Deep)
Mid: 4 x 317mm (Wide) x 242mm (Deep)
Bot: 3 x 427mm (Wide) x 277mm (Deep)
O/S Front Unit: 1240mm (H) x 1050mm (W) x 340mm (D)
Storage: 3 shelves / 14 compartments
Top: 6 x 161mm (Wide) x 190mm (Deep)
Mid: 5 x 195mm (Wide) x 242mm (Deep)
Bot: 3 x 334mm (Wide) x 277mm (Deep)
Additional Information
- Some slight trimming of end panels may be required due to differences in plylining kits
- All prices include VAT – a VAT invoice is provided with your order
- Free delivery covers Mainland UK (England, Wales, and Industrial Scotland)
- Highlands, Islands and other remote areas may require additional charges
- A contact phone number is required for courier delivery
Need More Info?
If you're unsure whether this fits your van or need more info, click below to contact us directly.
