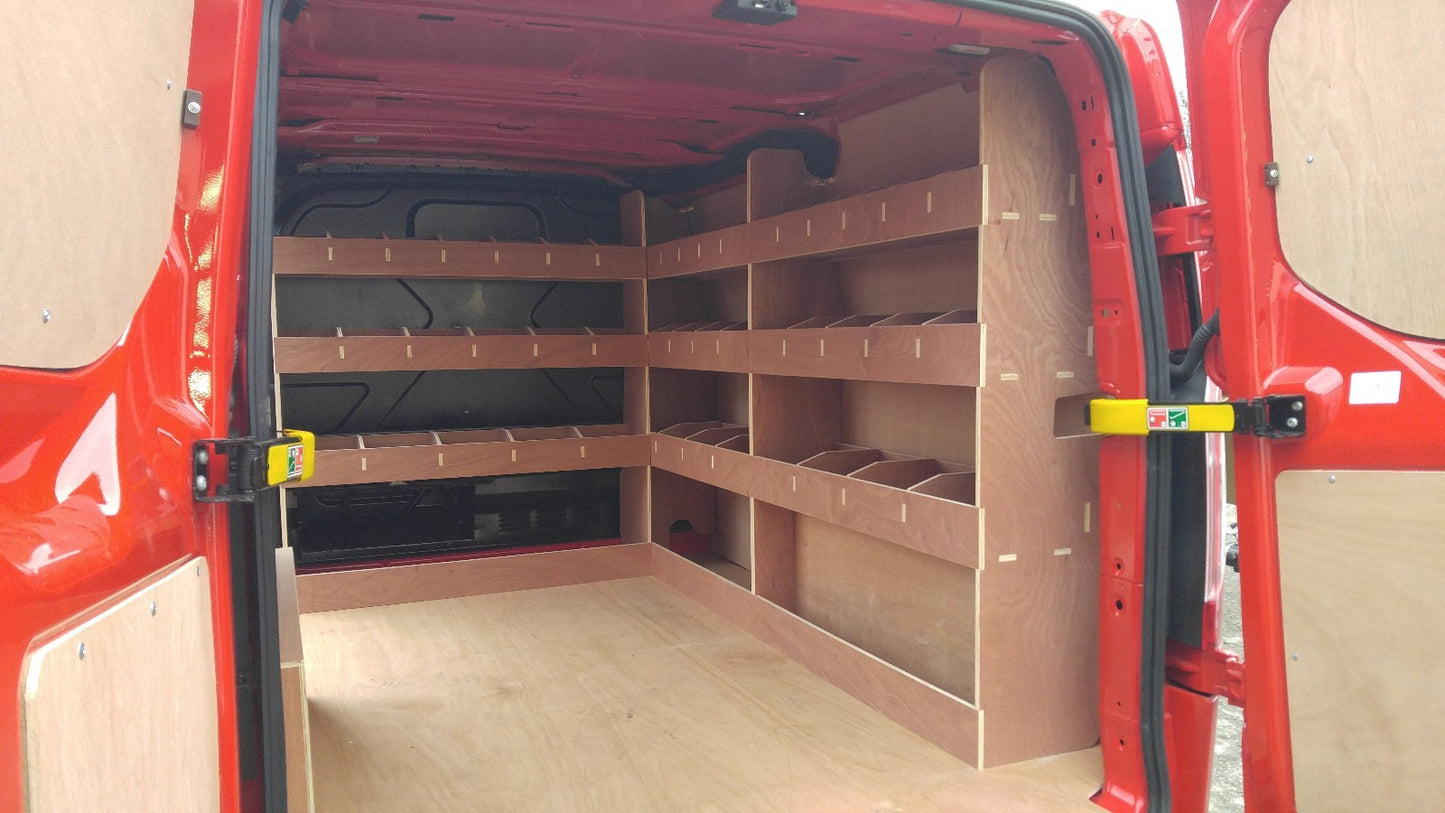

Ford Transit Custom SWB 2012-2023 TRIPLE , Plywood Shelving, Storage organise

Ford Transit Custom SWB 2012-2023 Van Racking System – Triple (3 Units)

Premium Plywood Van Shelving | Flat Pack | CNC Cut | Built to Last

Product Overview

This triple setup includes 3 custom-made shelving units designed specifically for Ford Transit Custom SWB 2012-2023 van. Each unit is CNC-cut for precision and crafted from premium 12mm hardwood plywood — built for serious work vans that demand durability.

The design maximises storage space while following the internal contours of your van for a snug, professional fit.

Flat Pack & Assembly

• All units arrive flat-packed for easy handling
• Assembly takes around 10–15 minutes per unit
• Assembly hardware and screws supplied (glue not included)
• Clear instructions provided

Materials & Build Quality

• Made from premium FSC-certified 12mm hardwood plywood
• Far more durable than lightweight ply variants
• Traditional mortise and tenon joints for strength
• Grooved bases for long-lasting performance

Dimensions

O/S Rear Unit: 1350mm (H) x 1020mm (W) x 298mm (D)

Storage: 3 shelves / 15 compartments

Top: 6 x 156mm (Wide) x 191mm (Deep)
Mid: 5 x 190mm (Wide) x 242mm (Deep)
Bot: 4 x 240mm (Wide) x 242mm (Deep)

---

O/S Front Unit: 1350mm (H) x 1070mm (W) x 298mm (D)

Storage: 3 shelves / 15 compartments

Top: 6 x 156mm (Wide) x 191mm (Deep)
Mid: 5 x 190mm (Wide) x 242mm (Deep)
Bot: 4 x 240mm (Wide) x 242mm (Deep)

---

Bulkhead Unit: 1350mm (H) x 1190mm (W) x 280mm (D)

Storage: 3 shelves / 18 compartments

Top: 7 x 156mm (Wide) x 190mm (Deep)
Mid: 6 x 188mm (Wide) x 190mm (Deep)
Bot: 5 x 222mm (Wide) x 190mm (Deep)

Note: Bulkhead shelf is specially designed to allow access to the under-seat compartment without losing lower shelf space.

Additional Information

• Some slight trimming of end panels may be required due to differences in plylining kits
• All prices include VAT – a VAT invoice is provided with your order
• Free delivery covers Mainland UK (England, Wales, and Industrial Scotland)
• Highlands, Islands and other remote areas may require additional charges
• A contact phone number is required for courier delivery
